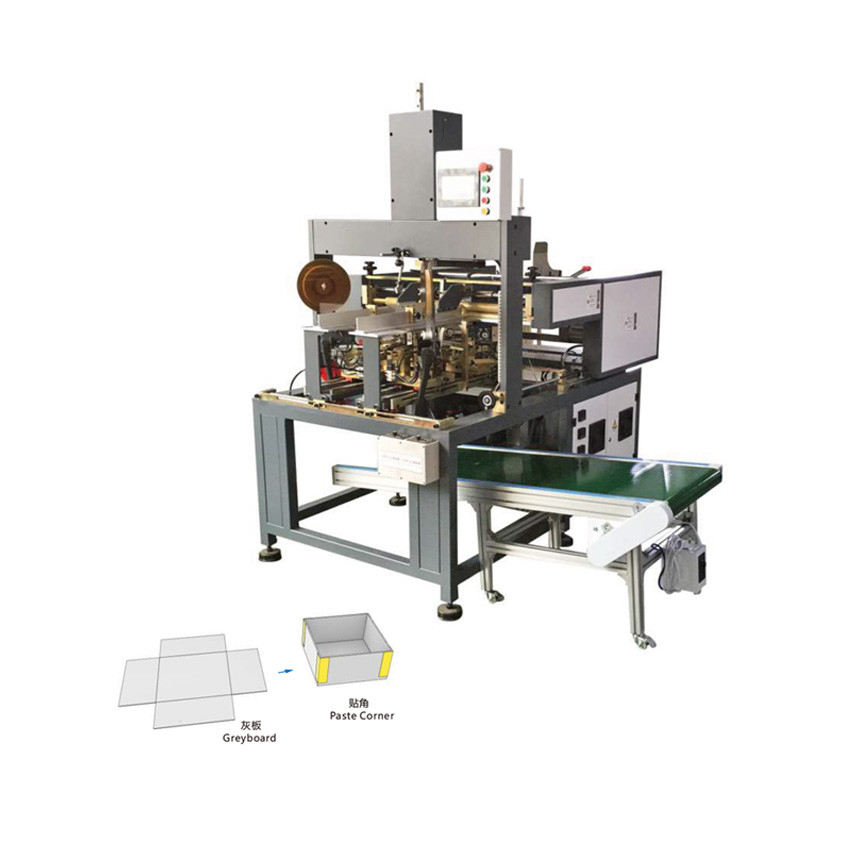

>Product introduction

HM-S400 adopts PLC for controlling, servo for driving, touch screen for
operation, step motor to feed tape. Thus, it is very stable, accurate and durable,
which makes it a very reasonable choice for rigid box manufacturers.

> Features and fmction

1. Driven by servo motor, and controlled by PLC;
2. Operated by touch screen, with both Chinese and English version;
3. All electric parts are from famous brand, low error and high precision;
4. With malfunction alarm and fault display;
5. Boards are fed from bottom, thus no need to stop the machine for
adding boards;
6. The mainshaft adopts servo motor to drive the gear rail, making sure
every accurate movement;

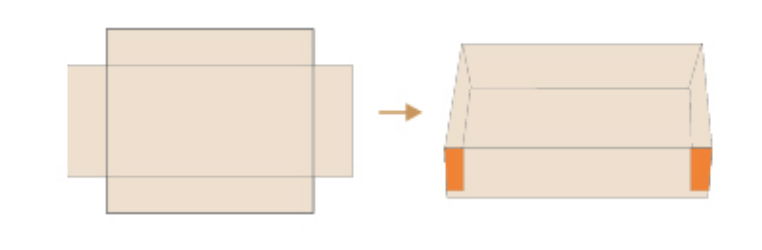

7. Step motors feed hot melt tapes which can paste 4 corners at one time;

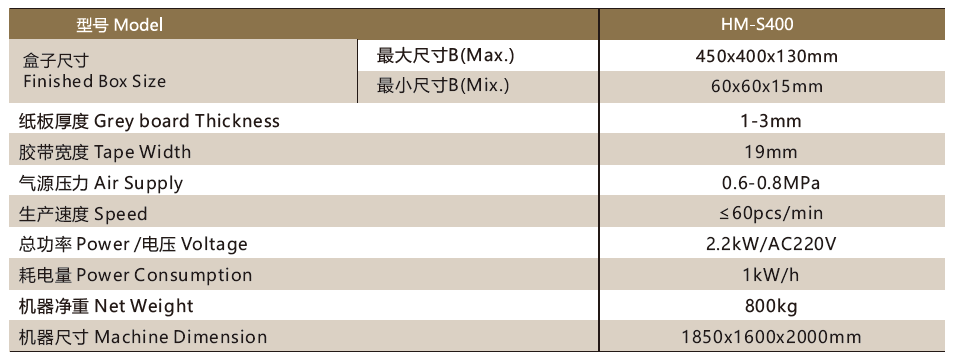

＞Technical parameters
