HM-CX3525A Automatic Rigid Box Machine product introduction

HM-CX3525A Automatic rigid box machine is for making premium boxes of regular size, which is digital
setting with memory system. It is suitable for mass production of various box types, such as high-end jewelry
boxes, mobile phone boxes, jewelry boxes, gift boxes , cosmetics boxes, watch boxes etc, the biggest box can reach
350 mm in length and 250 mm in width. The range of boxes is larger and can meet the needs of the modern
packaging market. The appearance of the whole machine has been completely redesigned to be safer and more
beautiful.

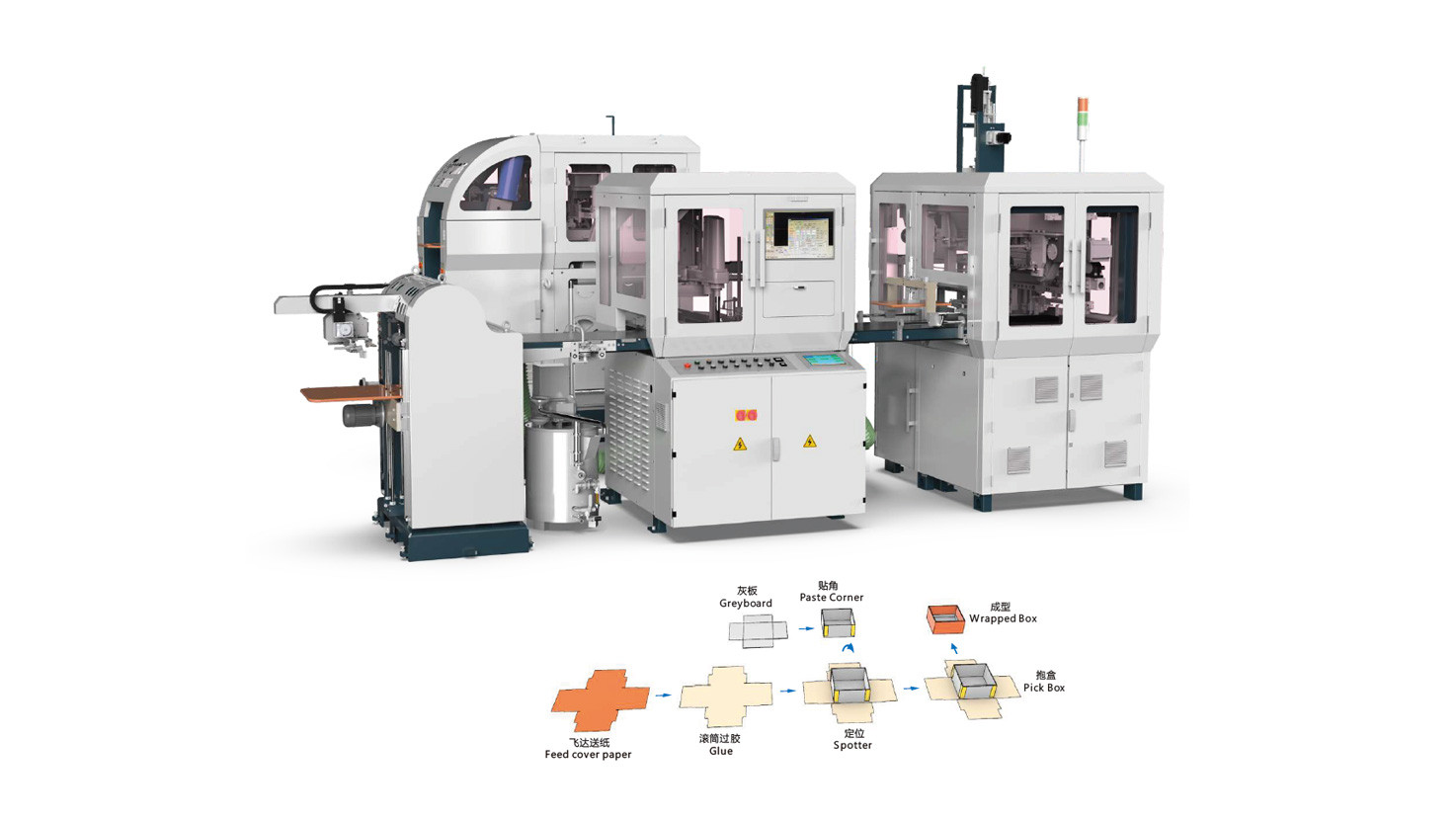

This machine adopts PLC and man-machine control system and camera tracing system to feed paper, gluing,
feed greyboard , pasted four corners, spot greyboard, lift box, fold corner edges and wrap box automatically.
The feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable

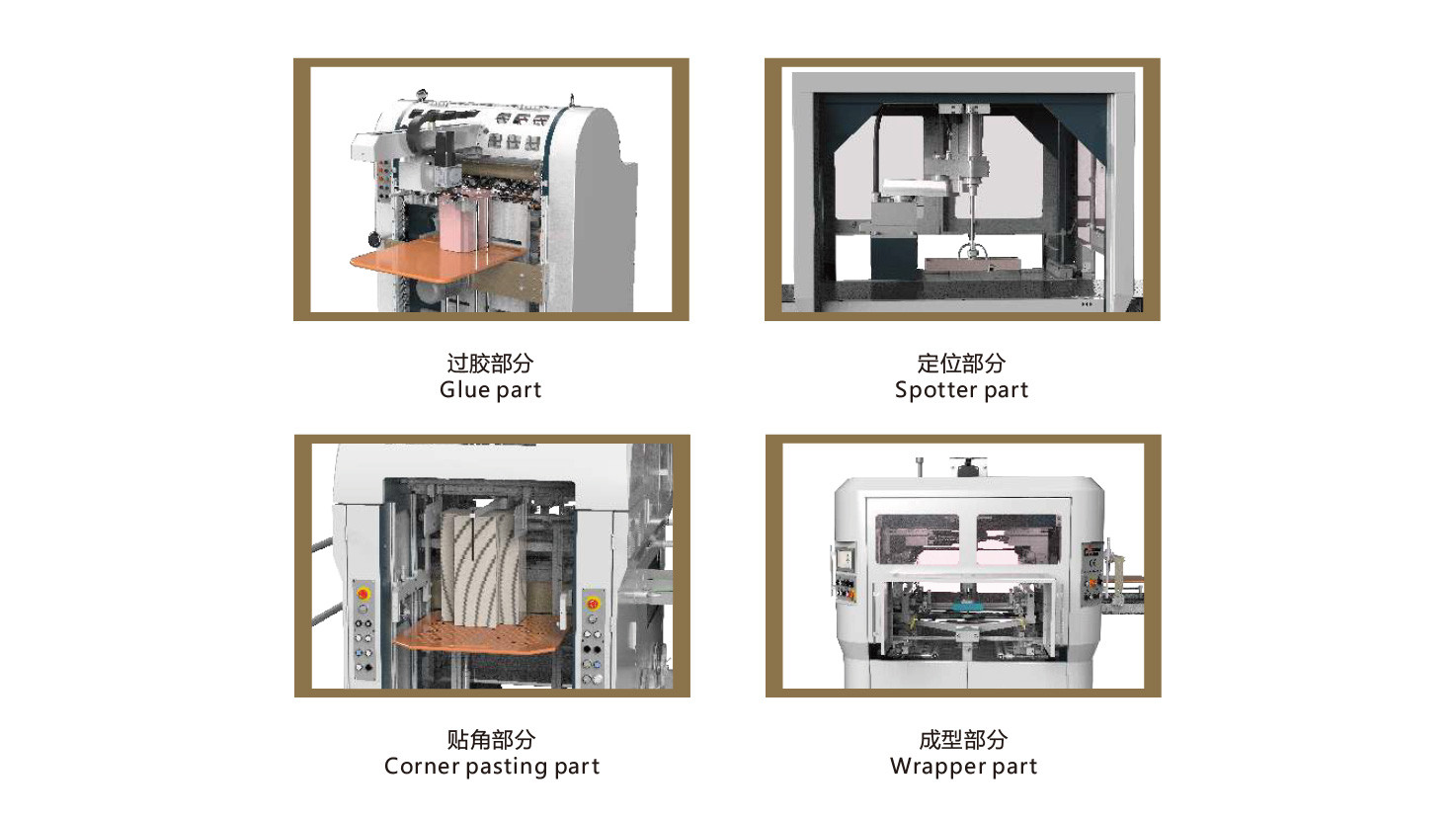

transmission and enjoys high accuracy, easy adjusting, and efficiency. The spotting unit adopts camera tracing
system and robot arm to pick and spot the greyboard, enhancing the spotter accuracy to ±0.05mm. The forming
unit adopts Japan THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and
fluent movement and enlarge the folding-in depth and corner edges.

HM-CX3525A Automatic Rigid Box Machine unit features and standard equipment

1. Suit to all kinds of rigid boxes in mass production;
2. Single-station pneumatic forming; (Details please check the note)
3. Size change Manual adjust；
4. The long side and short side are layered and formed;
5. Parameters adopts computer digital setting;
6. Auto error stop and display;
7. Automatic feed paper and greyboard;
8. 24-hour glue timing heating function;
9. Wrapper can input 300 product formulas;
10. Corner pasting part with independent man-machine control and heating
system; (Details please check the note)
11. Multifunctional Robot Vision Image Positioning System; (Details please check
the note)
12. Automatic control system for glue viscosity (optional); (Details please check the
note)
13. Digital setting with memory system (optional); (Details please check the note)
14. Main Slider and pull mold section synchronized; (Details please check the note)
15. Bottom mould use Piston type; (Details please check the note)
16. The box-out direction is parallel to the main conveyor belt;

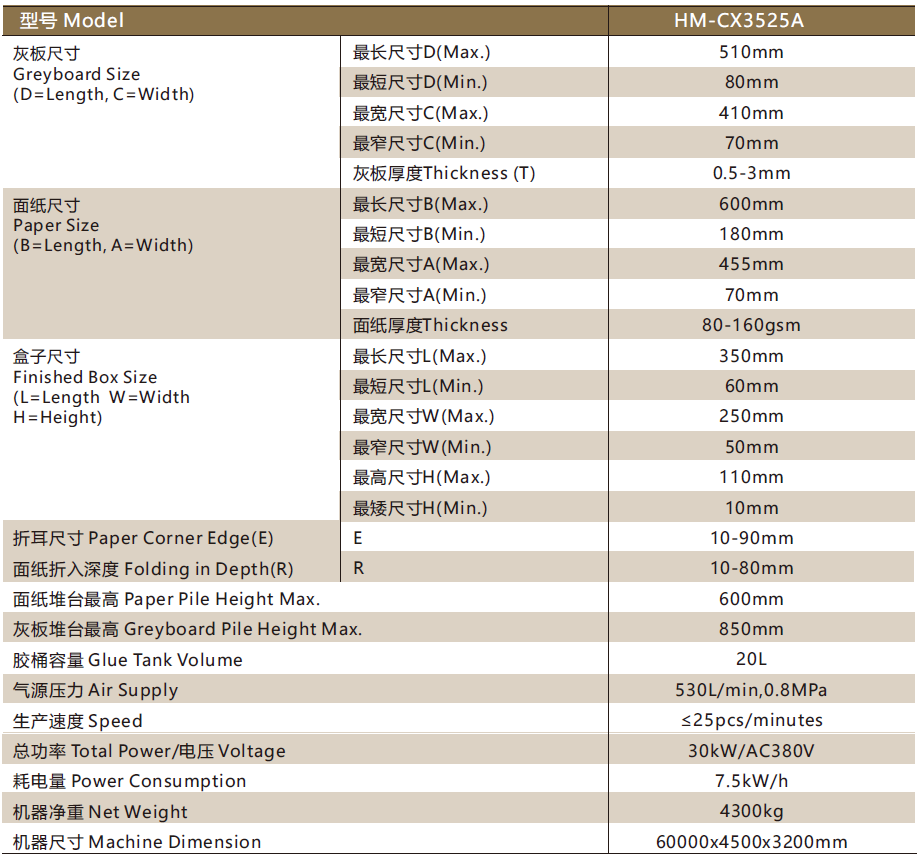

The main technical parameters of HM-CX3525A Automatic Rigid Box Machine

Note:

1、The Finished Box Max. sizes are determined by paper size.

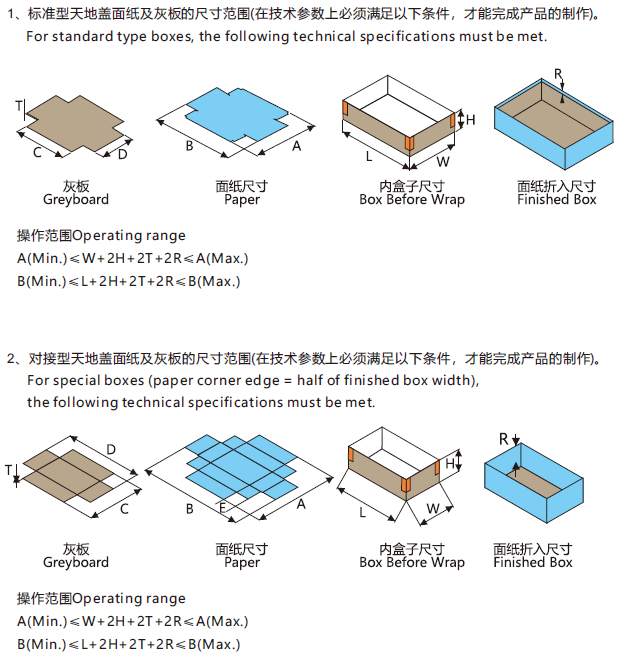

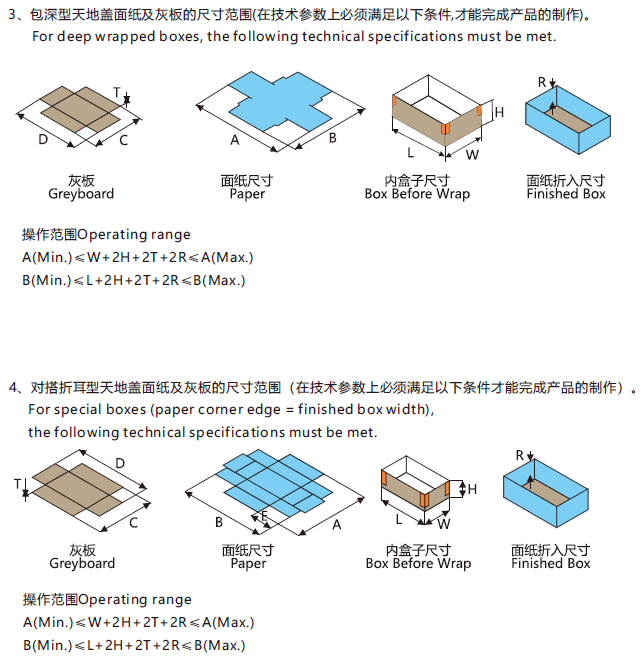

A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2、 Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3、 If finished box height is 110mm,the length>80mm;when the length<80mm,the finished box height≤90mm
4、The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
5、Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
