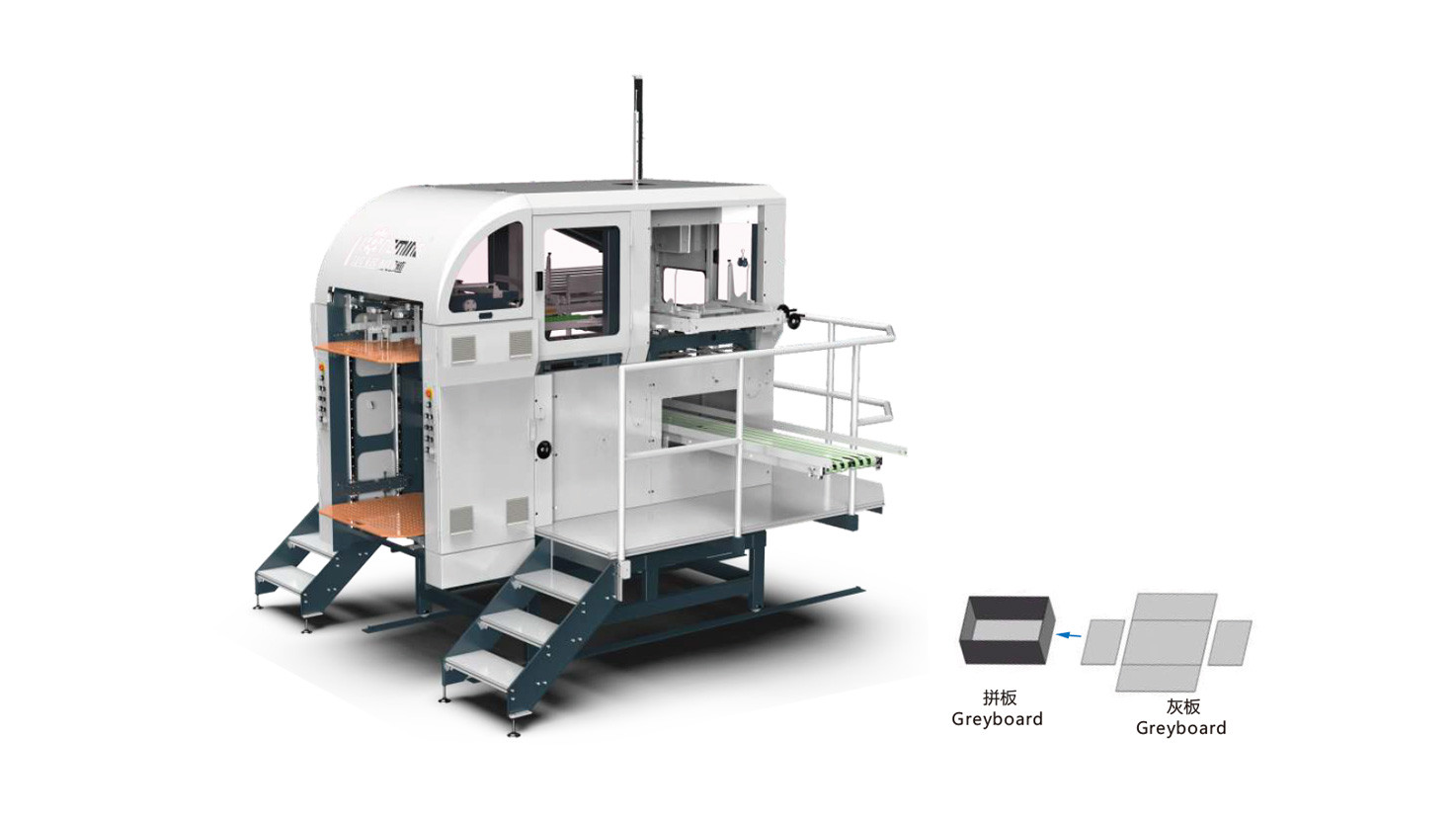

HM-S6040 Automatic Corner Pasting and assemblying Machine (Mutifunction) product introduction

HM-S6040 is one mutifunction Automatic Corner Pasting and Assemblying Machine, not only can
use PET/Paper tape stick the corner together, also can choose spray hot glue to stick corner together;
whilst, it also suitable for 3pcs greyboard assemble together
This machine adopts PLC and touch screen man-machine control system to realize the automatic
completion of board feeding, glue spraying, positioning and forming. The operation interface is simple
and easy to use.

HM-S6040 Automatic Corner Pasting and assemblying Machine (Mutifunction)  unit features and standard equipment

1. Mutiple working mode: Stick by tape; Spray hot glue;
and Spray glue for assembling greyboard；
2. Parameters adopts computer digital setting；
3. Auto Error stop and display；
4. Automatic feeding greyboard；
5. make glue even and thickness can be adjustable；
6. The whole machine adopts servo control system；

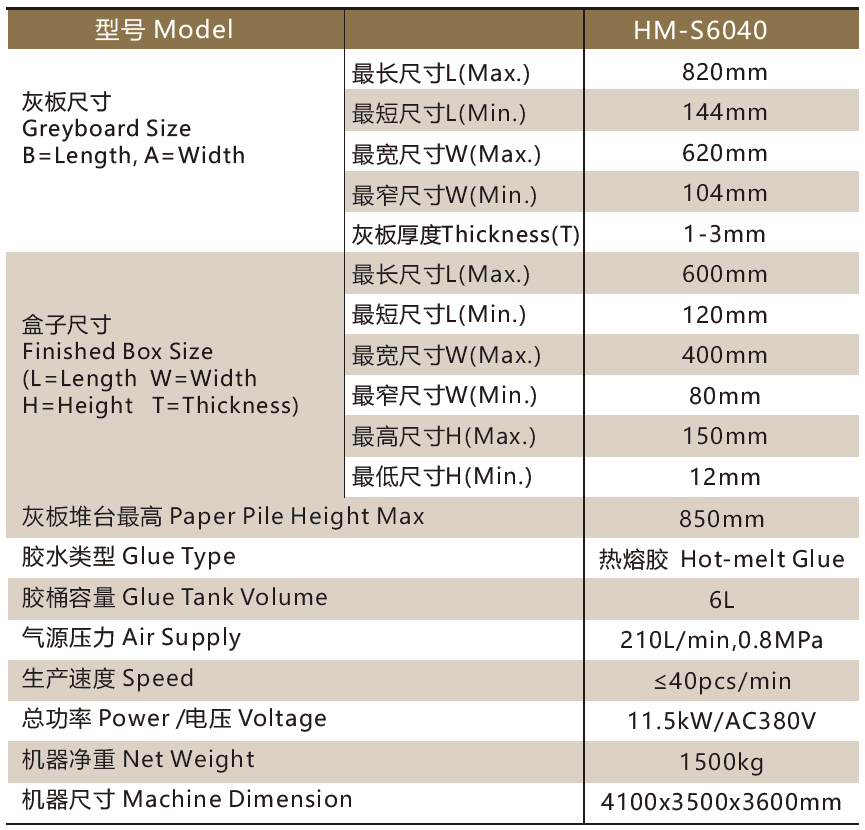

The main technical parameters of HM-S6040 Automatic Corner Pasting and assemblying Machine (Mutifunction)

Note:

Due to the continuous product improvement, the photos and parameters are for your reference only.
