HM-350FX/350E Automatic Gluing and Spotter Machine product introduction

HM-ZD350FX Automatic Gluing and Spotter Machine is an
automatic equipment with multifunction for high-precision
positioning of small-sized premium boxes and hard cover.
HM-ZD350E is a high-precision positioning for small-sized
premium box, It's suitable to all kinds of paper and box shells
positioning processes.

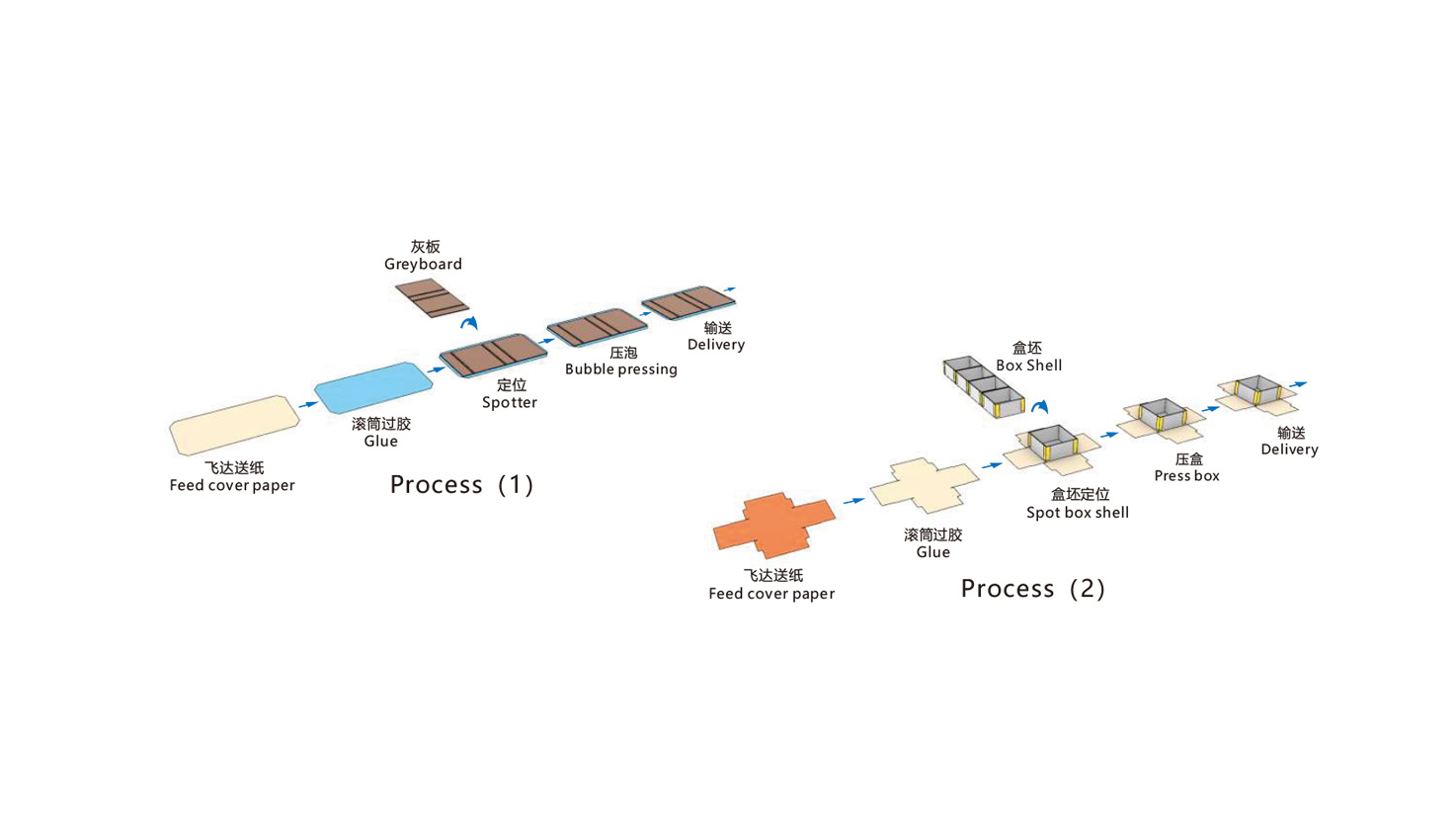

This machine adopts PLC , man-machine control and CCD
positioning system, which enable the machine to feed paper, gluing
and spotter the box automatically and fluently. The feeder, the gluer
and the conveyor are driven by servo system which has continuously
variable transmission and enjoys high accuracy, easy adjusting and
high efficiency. The spotting unit adopts camera tracing system and
robot arm to pick and spot the greyboard, enhancing the spotting
accuracy to ±0.05mm, with even faster speed.

HM-350FX/350E Automatic Gluing and Spotter Machine  unit features and standard equipment

1. Suit to all kinds of paper and box shells positioning process;
2. Suit to all kinds of paper and cardboard positioning process （For
HM-ZD350FX only);
3. Parameter adopts computer digital setting;
4. Auto error stop and display;
5. Automatic feed paper;
6. 24-hour glue timing heating function;
7. Servo system for controlling the whole machine;
8. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm)；(Details please check the note)
9. Automatic control system of glue viscosity (optional); (Details please check
the note)

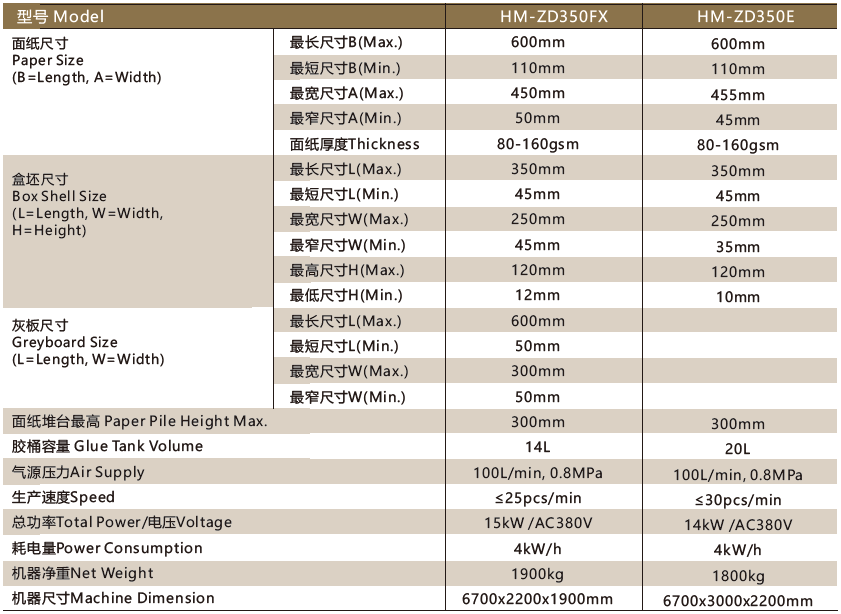

The main technical parameters of HM-350FX/350E Automatic Gluing and Spotter Machine

Note:

White glue tank is optional, Please specify when placing order.
